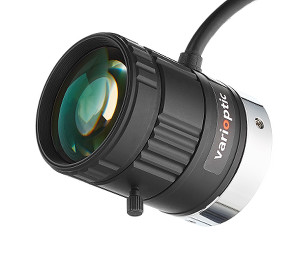

Caspian C-39N0-250



Caspian



The Caspian C-39N0-250 is an electronically focus controllable C-Mount objective, based on the Arctic 39N0 Liquid Lens. It incorporates all necessary electronic components to drive the Liquid Lens, and just needs a DC power supply; focus can be controlled through either an RS232, I²C, Analog or SPI input. With a 25 mm EFL, and compatible with 2/3" sensors, it is specifically designed for machine vision applications. It also includes a manual variable iris.


Download Product Datasheet (633.8 KB)




Ordering information

C-C-39N0-250-XXX
where XXX determines objective configuration :

  • I2C: I²C or analog operation
  • R33: RS232 with 3.3 V signal or analog operation
  • R12: RS232 with 12 V signal or analog operation
  • SPI: SPI operation only

Key features

  • Variable focus from 12 cm to infinity
  • Silent
  • Supports I2C - Analog - RS232 - SPI interfaces
  • Supports closed loop operation

Typical performance at 25°C

Effective Focal Length   25 mm
F-number  4 to 22
Sensor Compatibility  2/3"
Image Circle Diameter  11 mm
DC power supply  3.3 - 24 VDC
Current consumption  100mA (3.3V) to 25mA (24V)
Connector  6 pin JST SHR-06V-S-B



Getting started with Caspian C-39N0-250

For more detailed information on optical, mechanical, electrical performance and design, please contact us.
